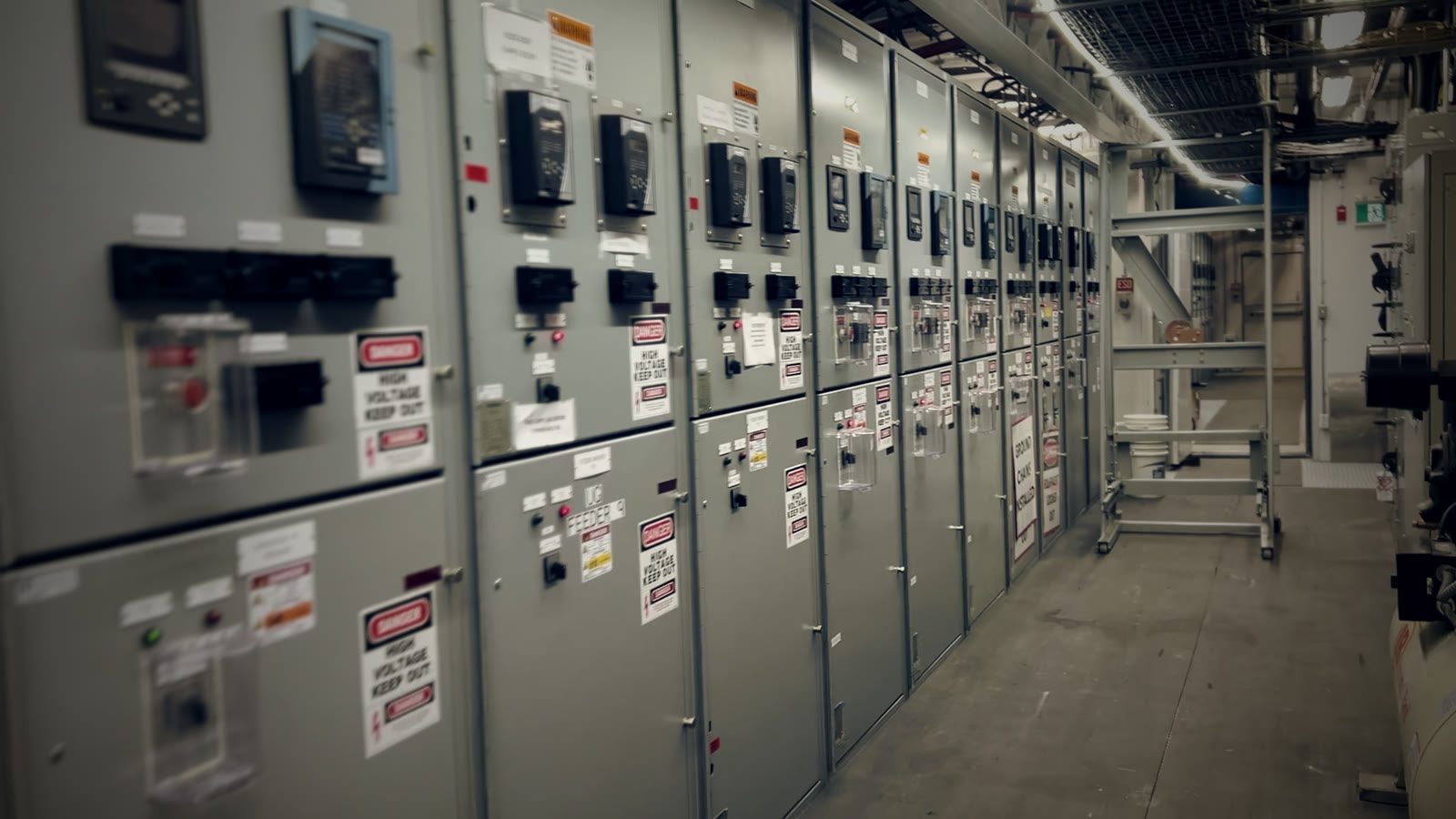

Medium-voltage metal-clad switchgear lineup during a planned breaker outage

Blog · Engineering note · Medium-voltage switchgear

Medium-voltage breaker testing: maintaining the heartbeat of critical facilities

In a hospital, a marine terminal or a fly-in mine, everything downstream depends on a few medium-voltage breakers that stay closed for years and then have to open within a few cycles of a fault. This article covers how they fail, what a complete test proves, how often the standards call for one, and why the work no longer has to go to the manufacturer.

By Dynamic Thermal Imaging · · 10 min read

FIG. 01 · Medium-voltage metal-clad switchgear at a remote northern site during a planned breaker outage.

  • 60 · 36 · 12Maximum months between breaker maintenance and tests in NFPA 70B-2023, for equipment in condition 1, 2 and 36
  • 0.30Major failures per 100 breaker-years in CIGRE's 2004–2007 survey. Operating mechanisms caused the majority2
  • 0.25 msSpread between the three poles closing on a breaker we timed in September 2026 (Fig. 6)
  • 1972The year independent testing companies formed NETA to write a standard independent of manufacturers11
In this article
  1. 01The breaker that never moves
  2. 02How medium-voltage breakers actually fail
  3. 03What a complete test includes
  4. 04How often: condition, criticality, environment
  5. 05Three facilities, one heartbeat
  6. 06Who does the work
  7. 07How we run a medium-voltage breaker outage
  8. 08References

01The breaker that never moves

Medium-voltage breakers sit at the top of a facility's distribution system: the service entrance, the main-tie-main lineup, and the feeders to unit substations, large motors and transformers. Most of the time they do nothing visible. They carry load in the closed position, often for years without a single operation.

Their real job happens in the few cycles after a fault. A protective relay sees the fault current through its current transformers and closes its trip contact. The trip coil releases a latch, the mechanism releases its stored energy and the contacts part. Every link in that chain has to work, on time, after years of sitting still.

When one link fails, the fault does not go away. It is cleared by the next device upstream, often the main breaker or the utility's, which takes out a much larger part of the facility. The arc also burns for longer while it waits, and incident energy rises in proportion to arcing time1. A breaker that fails to open turns a feeder fault into a facility outage and a larger arc-flash event.

Hospitals, marine terminals and remote mines have little in common, except this: when a medium-voltage breaker fails to operate, every system downstream goes down with it.

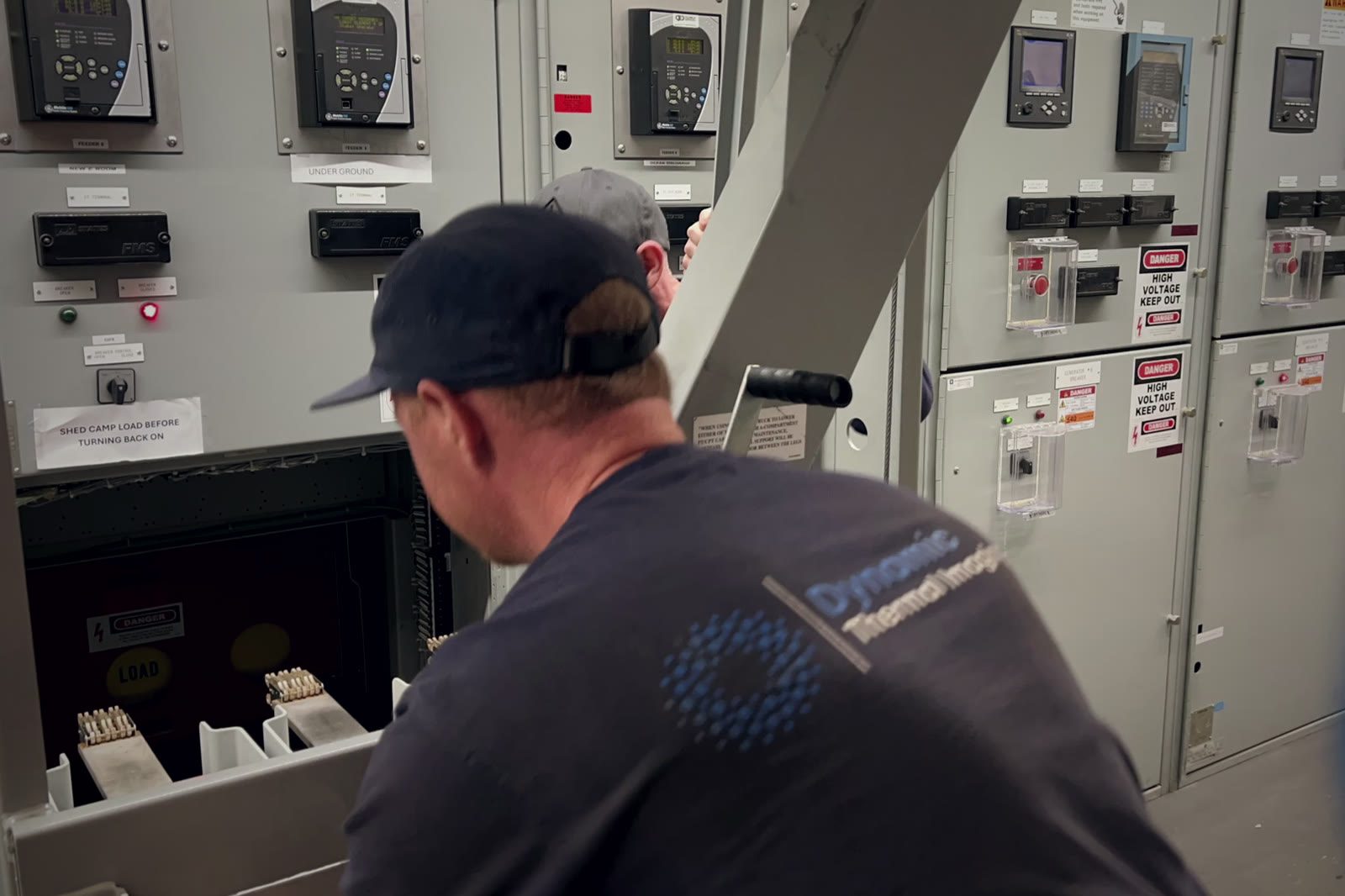

DTI electrician racking a draw-out medium-voltage breaker out of its cell
Fig. 02A draw-out breaker racked out of its cell. Breakers like this can carry load for years without a single operation.

02How medium-voltage breakers actually fail

The interrupter is rarely where the trouble starts. On most modern breakers it is a sealed vacuum bottle; on older air-magnetic designs, a set of arc chutes. Failures are far more often mechanical.

CIGRE's international enquiry on circuit-breaker reliability covered 281,090 breaker-years of service from 2004 to 2007 and recorded 840 major failures, or 0.30 per 100 breaker-years. As in the survey before it, operating mechanisms accounted for the majority of failures2. Those were transmission-class breakers, but medium-voltage breakers are built on the same architecture: a stored-energy spring mechanism, latches, rollers, linkages and the lubricant that keeps them moving.

The US Nuclear Regulatory Commission has documented the lubricant problem closely, because nuclear stations log every breaker that fails on demand. Information Notice 95-22 addressed breaker failures caused by hardened or contaminated lubricants, in both directions: failure to close and failure to open3. A year later, Information Notice 96-43 described a medium-voltage air-magnetic breaker that failed to open on demand; the examination found hardened grease in the breaker4.

Grease oxidizes and dries out with age, and a breaker that never operates never works it back through its bearings and latches. Parts that moved freely at commissioning can become stiff enough that the trip coil no longer releases the latch, or the contacts part more slowly than the coordination study assumed. None of it shows from the front of the switchgear.

Other common failure points

  • Primary disconnect fingers that lose spring pressure or lubricant and run hot on the bus stabs
  • Racking mechanisms, shutters and interlocks worn by years of use, or seized from never being used
  • Trip and close coils, charging motors, auxiliary switches and control wiring
  • Arc chutes on air-magnetic breakers that crack or collect conductive dust
  • Vacuum interrupters that slowly lose vacuum, and contacts that erode with every interruption

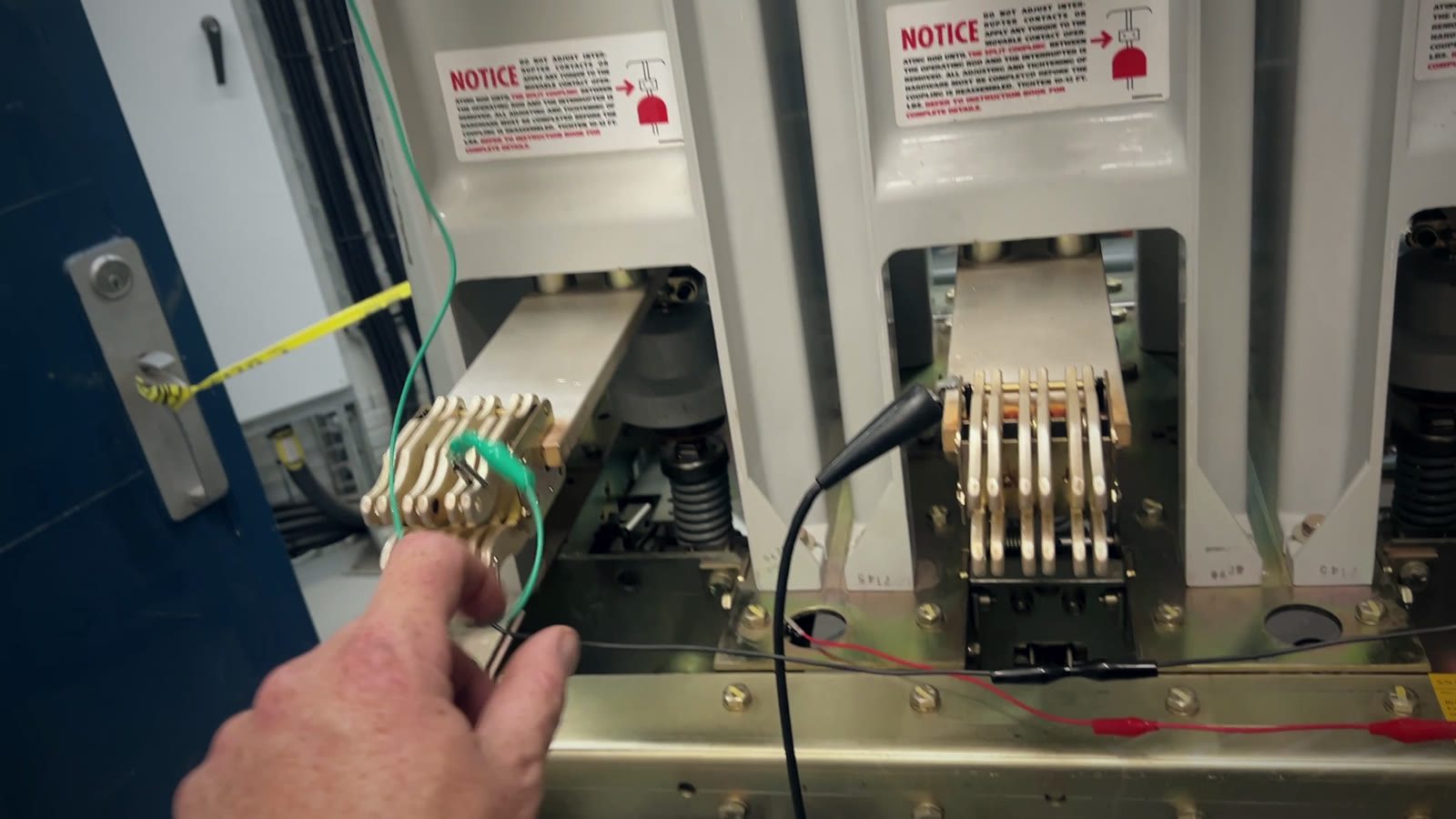

Primary disconnect fingers on a draw-out breaker with test leads attached
Fig. 03Primary disconnect fingers on a draw-out breaker. Spring pressure and lubricant here decide how hot the joint runs. The leads are set up for a pole contact-resistance test.

03What a complete test includes

A maintenance test is the breaker's instruction book and the ANSI/NETA Maintenance Testing Specifications5, turned into a field test sheet before the crew arrives. The list depends on the breaker type. On a draw-out vacuum or air-magnetic breaker in metal-clad switchgear, a complete program covers the following.

Medium-voltage breaker maintenance tests
TestWhat it provesWhat it finds
01Visual and mechanical inspectionNameplate, physical condition, racking, shutters, interlocks, cell switches and operations counterMissing hardware, damaged shutters, worn racking parts, interlocks that can be defeated
02Cleaning, lubrication and exercisingThe mechanism moves freely, with the lubricants the manufacturer specifiesHardened grease; operation that is slow or sticky until the breaker is serviced
03Contact resistanceEach pole's main current path, measured with a digital low-resistance ohmmeter at the test current the manufacturer specifiesA pole that reads high against its neighbours. Without manufacturer data, NETA says to investigate values that deviate from adjacent poles or similar breakers by more than 50 percent of the lowest value5
04Insulation resistanceInsulation phase to phase, phase to ground and across the open contactsMoisture, contamination and tracking
05Vacuum interrupter integrityAn overpotential test across each open vacuum bottleA bottle that has lost its vacuum and can no longer interrupt
06Timing and motionClose and open times, pole spread and contact bounce, recorded with a breaker analyzerSlow mechanisms and poles out of step with each other
07Coils, motor and control circuitTrip and close coils, the charging motor, anti-pump and auxiliary contacts, operated from the breaker's own control circuitFailed coils, burnt auxiliary contacts and wiring faults
08Protective relays and functional tripRelays tested by secondary injection, then each relay trips its breaker through the real trip circuitWrong settings, failed relay outputs and open trip circuits
09Primary injection, where neededTest current through the current transformers to prove ratio, polarity and the whole relay-to-breaker chainReversed or open CTs and wiring errors, most often after modifications

Every result is recorded as found and as left, against the manufacturer's values and NETA limits, so the next test can be compared with this one. Trending is where most early warnings come from. A pole whose contact resistance has crept up since the last outage becomes a planned repair instead of a failure.

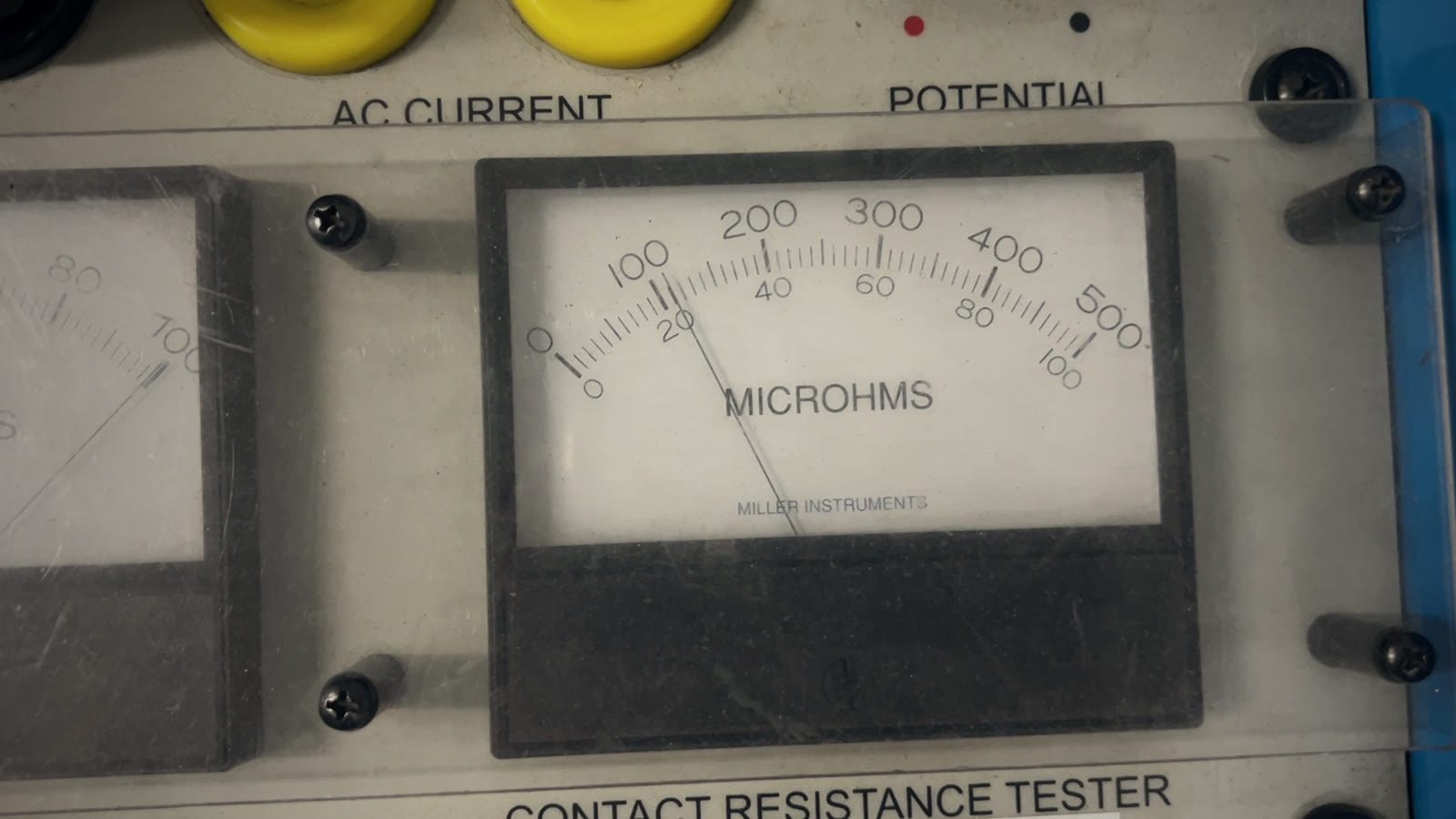

Analog micro-ohm meter on a contact resistance test set
Fig. 04Contact resistance is read in micro-ohms. Poles are compared with each other, with similar breakers and with the last test.

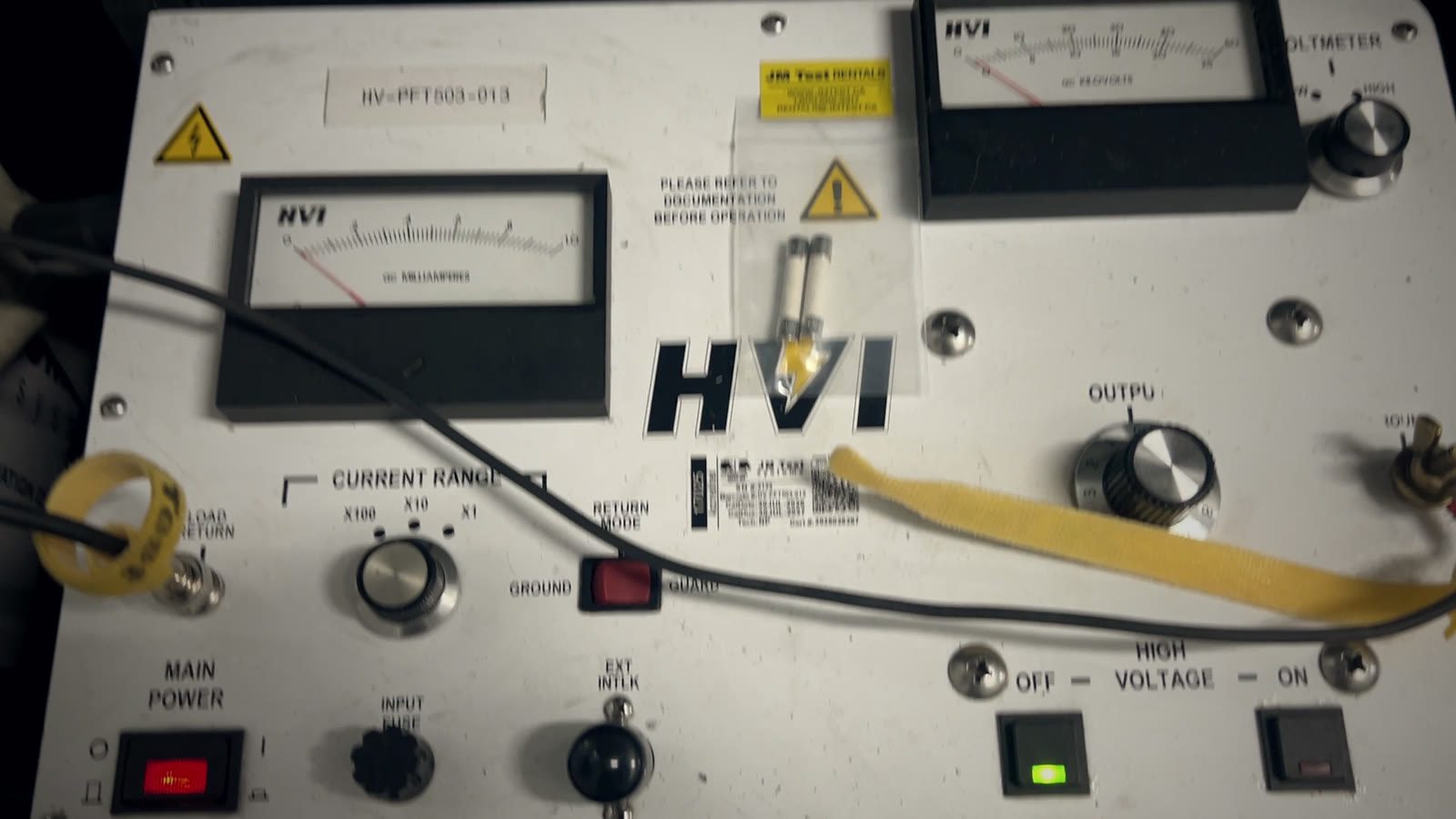

Overpotential test set used on medium-voltage breakers
Fig. 05Overpotential test set used for insulation and vacuum-interrupter integrity tests on medium-voltage breakers.

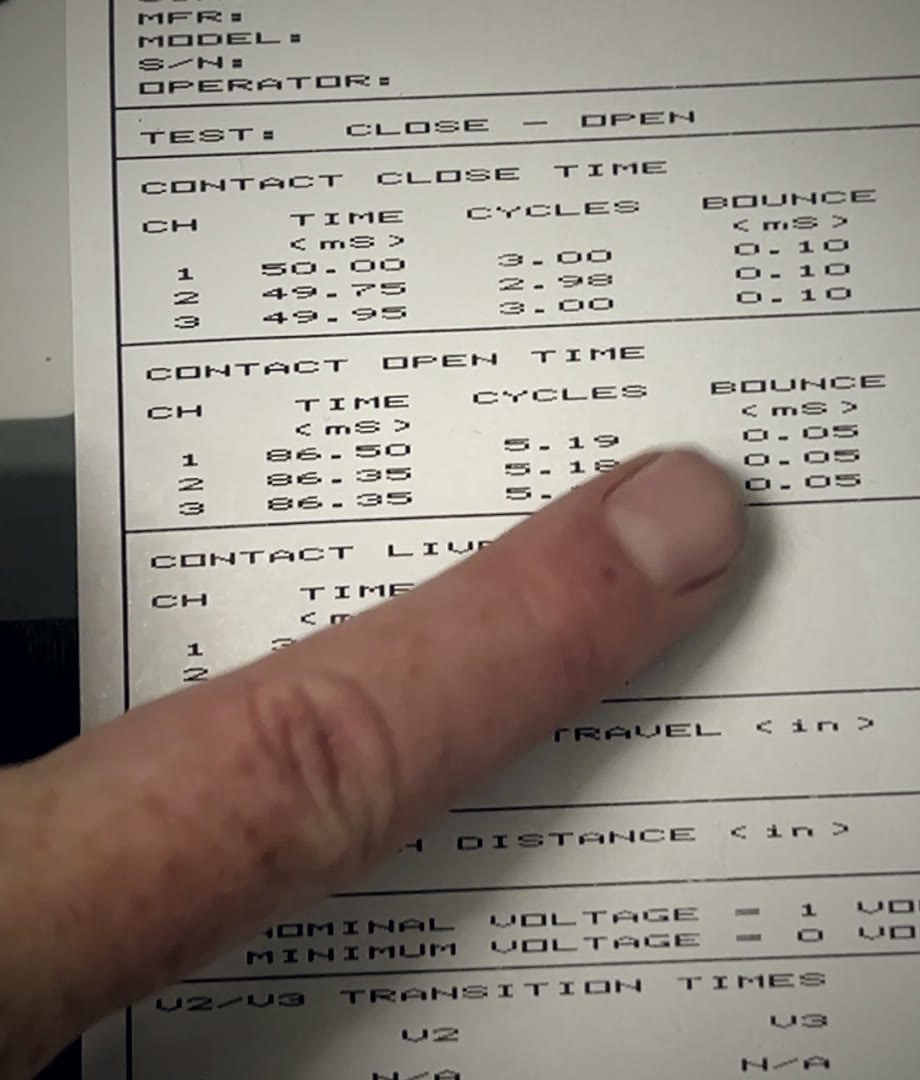

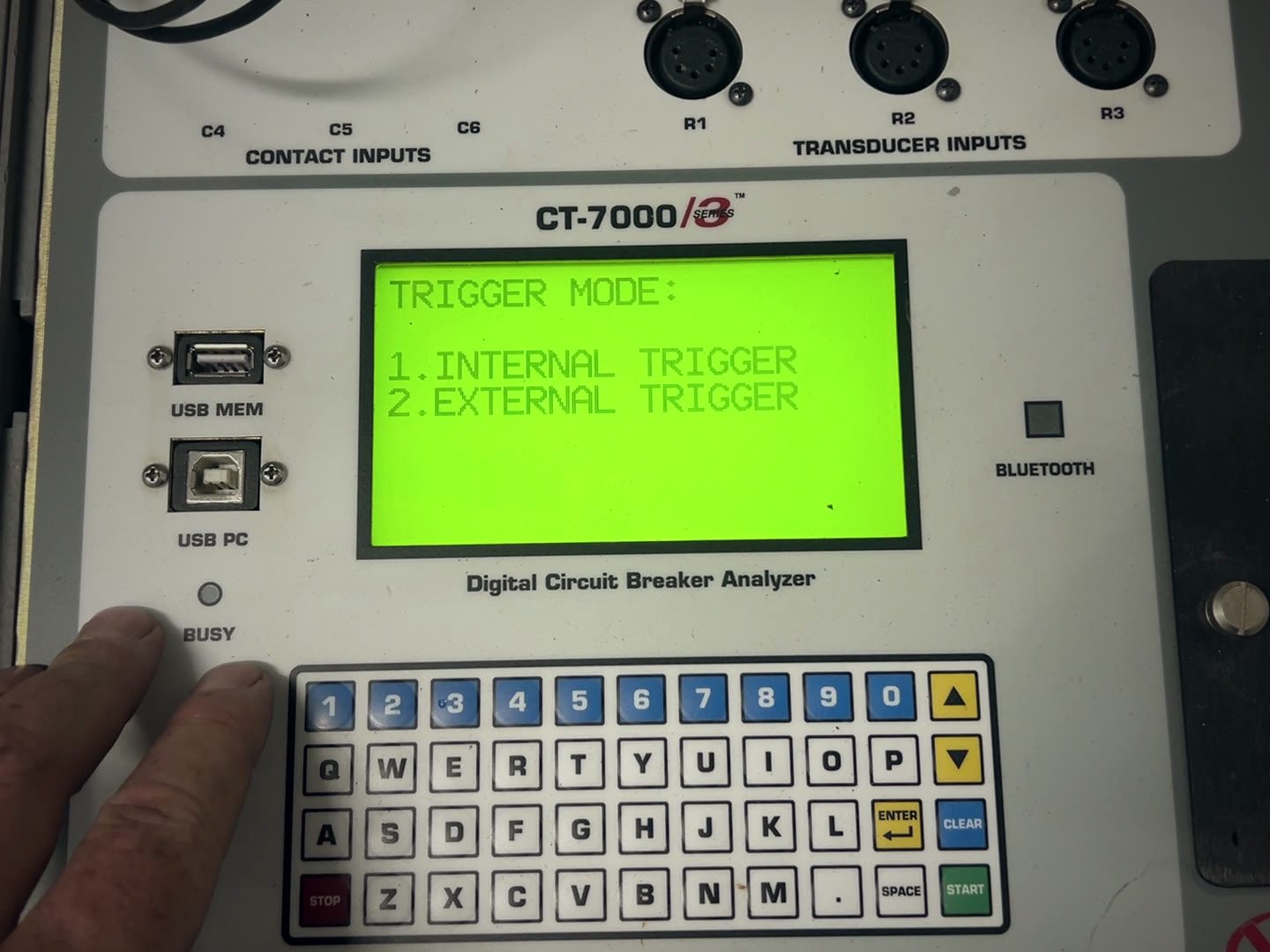

Digital circuit breaker analyzer keypad and screenBreaker analyzer printout of close and open times for three poles
Fig. 06Breaker analyzer and its close–open printout from this job. The three poles closed at 50.00, 49.75 and 49.95 ms, within 0.25 ms of each other, with 0.10 ms of contact bounce. Results are judged against the manufacturer's published timing.

04How often: condition, criticality, environment

With its 2023 edition, NFPA 70B changed from a recommended practice to a standard6. Its maintenance intervals come from an equipment condition assessment that rates three factors (physical condition, criticality and operating environment) and uses the worst of the three.

Where the manufacturer gives no interval and a failure would be an unacceptable risk, the standard's Table 9.2.2 sets these maximum intervals for circuit breakers:

Condition 1

Like new, maintained to plan

Maintenance and testing
60 mo
Visual inspection
12 mo
Infrared thermography
12 mo

Condition 2

Results changing, or repairs needed

Maintenance and testing
36 mo
Visual inspection
12 mo
Infrared thermography
12 mo

Condition 3

Missed cycles or repeated findings

Maintenance and testing
12 mo
Visual inspection
6 mo
Infrared thermography
6 mo

Summarized from NFPA 70B-2023. Confirm against the current edition and the manufacturer's instructions, which come first where they exist.

In Canada, CSA Z463 frames the same decision as a documented maintenance program: an equipment inventory, a criticality ranking, intervals justified by condition and history, and records that show the work was done7. Because the assessment takes the worst factor, a breaker that looks new can still land on a shorter interval if it feeds a hospital's essential electrical system or sits in salt air or mine dust.

05Three facilities, one heartbeat

The test list barely changes from one facility to the next. What changes is the cost of an outage, the environment the gear lives in and how the work has to be planned.

Hospitals

The outage nobody can take

A hospital's essential electrical system is built so patient care survives a utility outage. In Canada it is governed by CSA Z32, which calls on CSA C282 for the emergency generators8. Generators and transfer switches are exercised on a routine schedule. The medium-voltage breakers upstream (the service main, the ties and the feeders to unit substations) usually are not, because operating them means an outage in a building that never closes.

That makes them the classic breakers that never move. The work is planned feeder by feeder, with the affected loads carried by generators or an alternate feeder while each breaker is racked out and tested. Windows are agreed with facilities management well in advance. Because we also do CSA Z32 testing in patient care areas, one visit can cover both ends of the system.

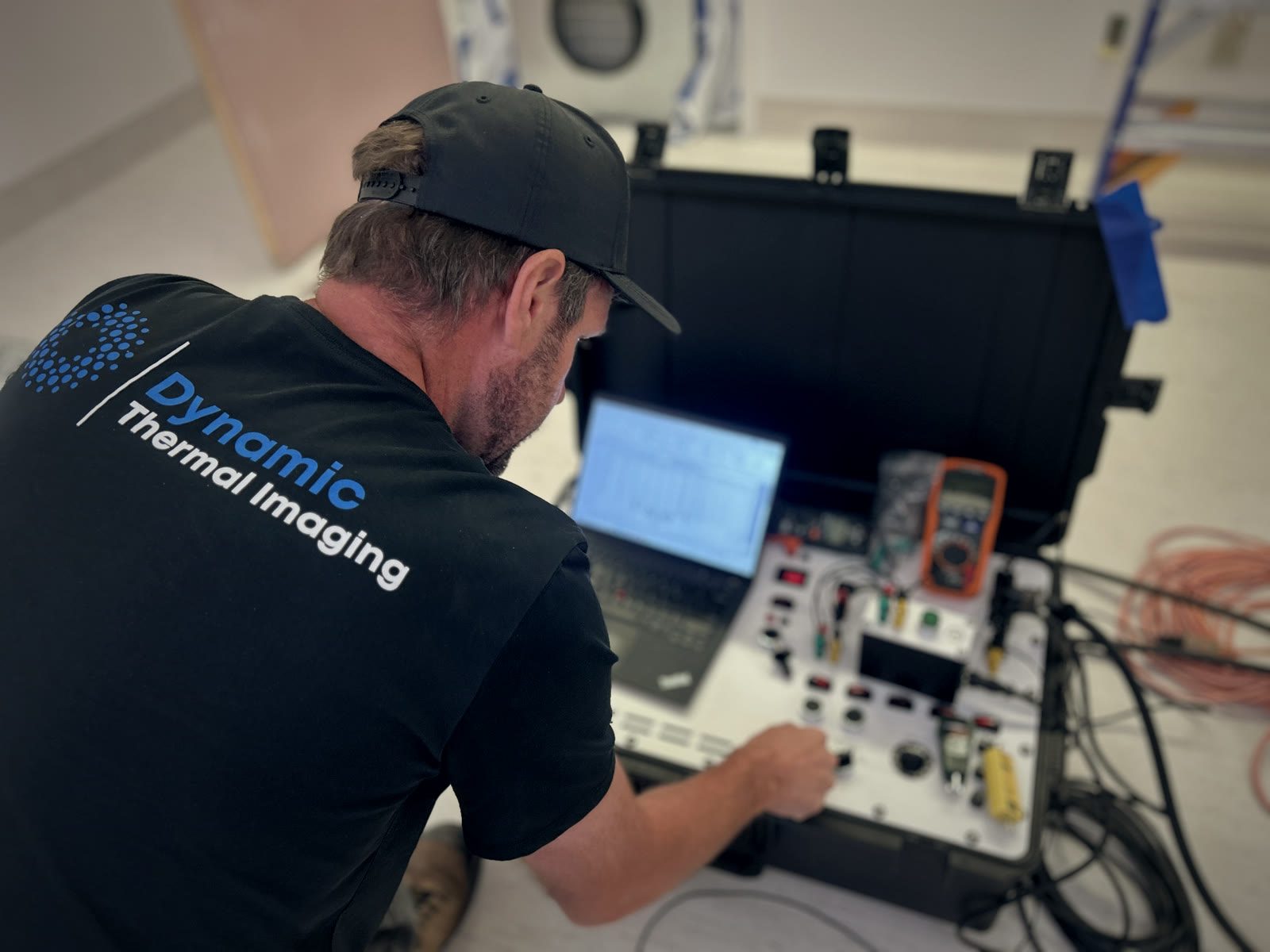

DTI technician running CSA Z32 tests with a portable test set in a hospital
Fig. 07CSA Z32 testing in a patient care area. The same hospital's medium-voltage breakers sit at the other end of the distribution system.
Marine

Salt air, vibration and the real circuit path

Ports, shipyards, ferry terminals and vessels put switchgear in humid, salt-laden air with large daily temperature swings. Condensation and chlorides attack the parts a breaker depends on: primary disconnects, mechanism linkages, auxiliary contacts and control wiring. On vessels, vibration loosens what shore-based equipment keeps tight.

The marine industry has just been reminded that a test only proves the path it uses. After the Tokyo MoU warned that ships' emergency power was passing simulated blackout tests and then failing real ones, IACS ran a concentrated inspection campaign through 2025. Of 36,723 ships inspected, 853 had deficiencies, and one of the most significant findings was the absence of controlled blackout test procedures: simulated tests were not exercising the circuit paths a real blackout uses9.

The same rule applies to every breaker test. Secondary injection proves the relay. Only a functional trip, from the relay through the real trip circuit to the breaker, proves the breaker will open.

853

of 36,723 ships inspected in the 2025 IACS campaign had deficiencies in their emergency power supply. A leading finding: no controlled blackout test procedure.

2.32% of ships inspected · IACS, 2026
Remote mining

Every missed item is another flight

Mine distribution is medium voltage from the main substation to the mill, the camp and the portable substations that feed mobile equipment. CSA M421, Use of electricity in mines, sets requirements for ground-fault protection and ground-conductor monitoring on supplies to mobile equipment10. Each of those protection schemes ends at a breaker that has to open.

On a fly-in site, a missing test lead or an unanswered question is not a return visit, it is another charter. Remote work changes how a job is planned more than what is tested. Test sheets are built from every breaker's instruction book before the crew flies. The full kit travels with the crew: overpotential set, low-resistance ohmmeter, breaker analyzer and relay test set. The outage is sequenced around the site's planned shutdown so production loses as few hours as possible.

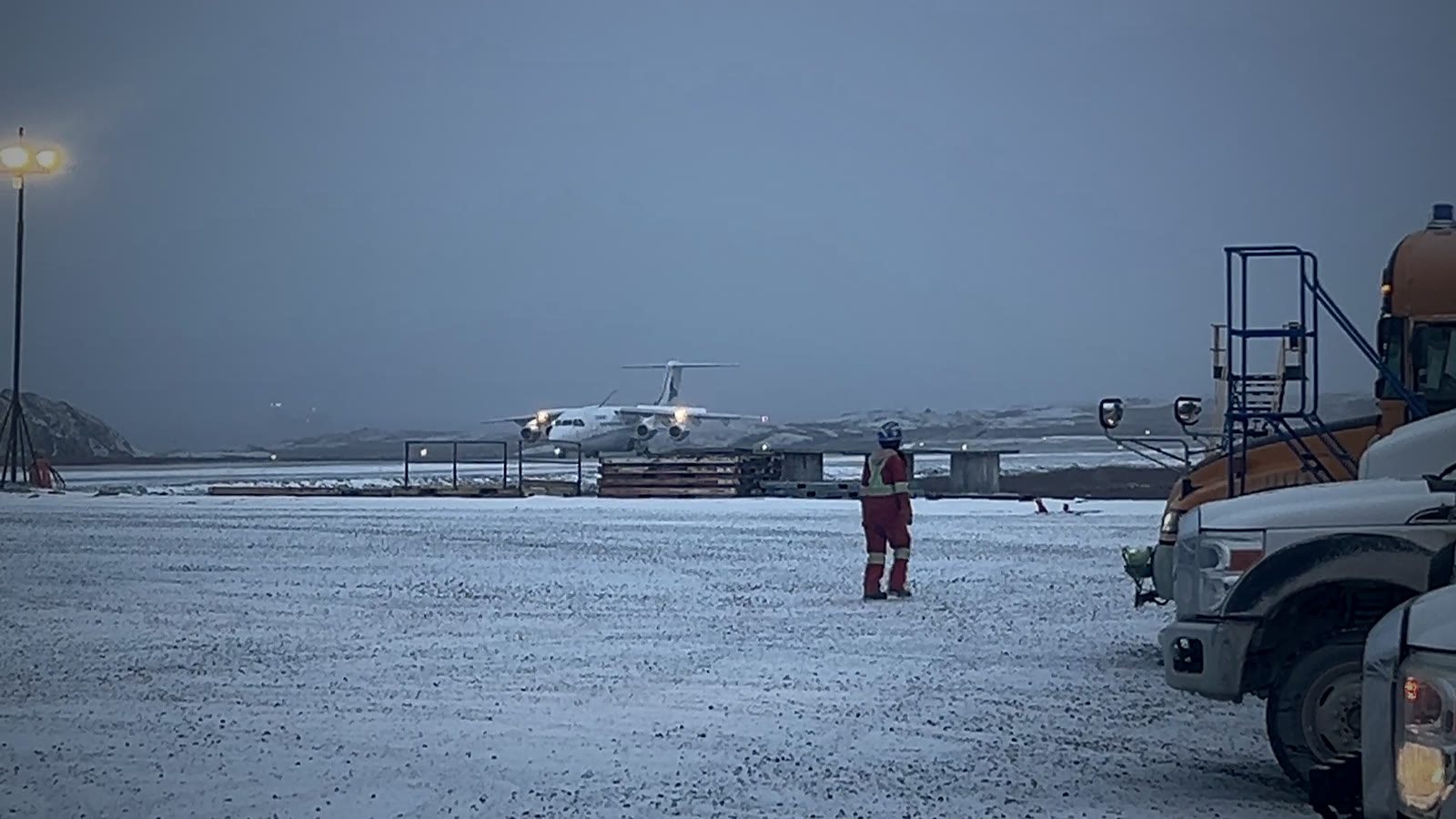

Charter aircraft on a snowy gravel airstrip at a remote northern mine site
Fig. 08Charter aircraft at a remote northern mine site. Test sets, spares and the sheets for every breaker fly in with the crew.

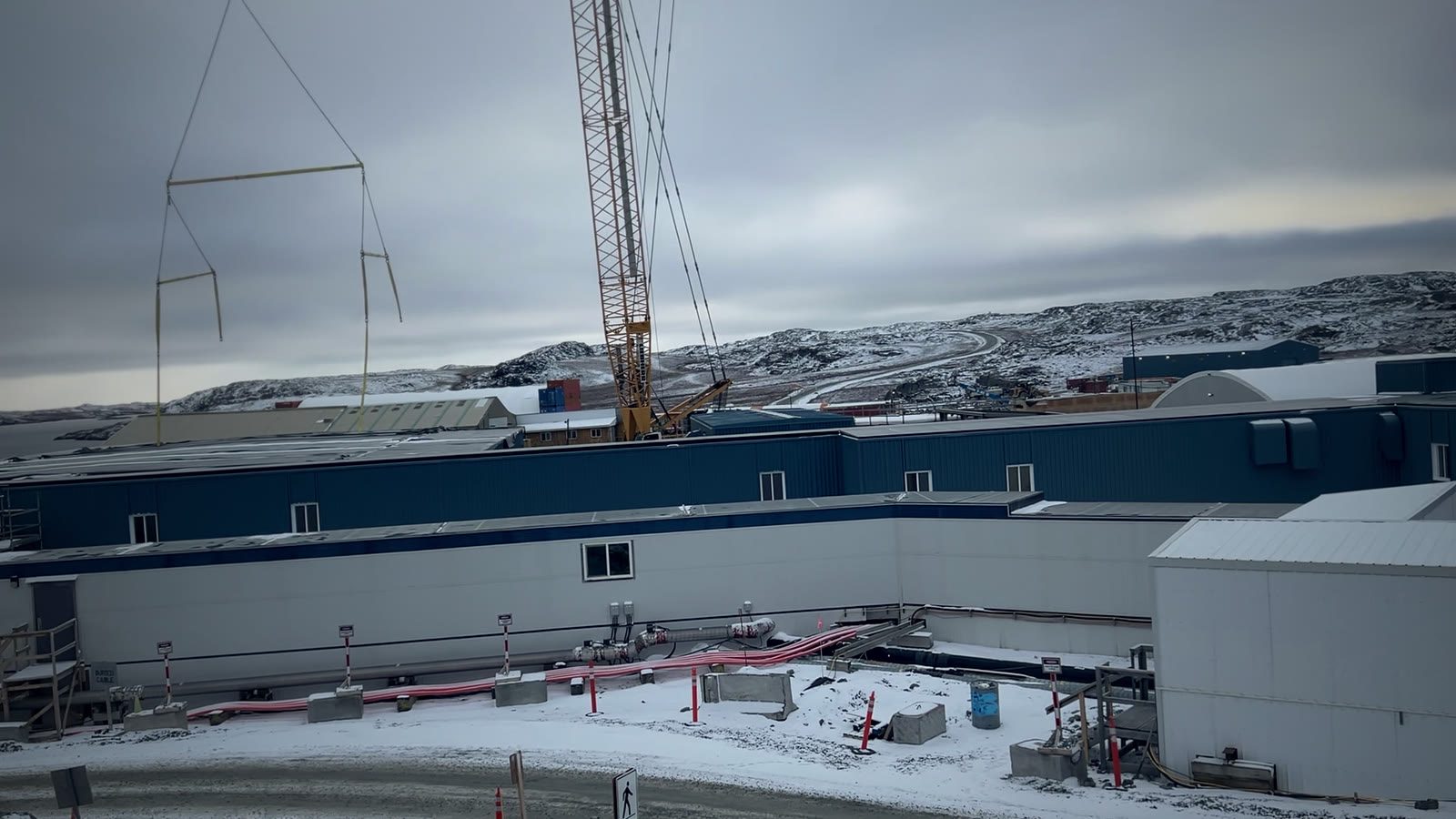

Remote northern mine site under early snow
Fig. 09The same site in early October. Outage windows follow the site's shutdown plan, and snow comes early in the North.

06Who does the work

For decades, medium-voltage breaker maintenance in Canada was largely the territory of the manufacturers' own field-service organizations, Eaton, Schneider Electric and Siemens among them, and of a short list of utility-trained specialists. When a breaker needed service, owners often called the manufacturer by default.

Independent testing changed that. In 1972, nine independent testing companies formed what is now the InterNational Electrical Testing Association (NETA) to write a testing standard independent of manufacturers, installers and owners11. Its acceptance and maintenance specifications are now American National Standards, and the instruments in the photos above are available to any qualified firm.

For an owner, the choice is no longer the manufacturer or nobody. A qualified independent crew tests every brand in a mixed lineup to the same sheet, tests the protective relays and scans the gear with infrared in the same mobilization, and keeps the data in one format year after year. On remote sites, combining that work into one trip saves charter seats, camp nights and outage hours.

The quality of a breaker test doesn't come from the logo on the truck. It comes from the procedure, the instruments and the people doing the work.

What to ask any provider

  • Test sheets built from each breaker's instruction book, with the manufacturer's and NETA limits printed on the sheet
  • As-found and as-left results, including relay and trip settings
  • Instrument serial numbers and calibration dates in the report
  • A functional trip from each protective relay through the real trip circuit
  • Comparison with the previous test, not only pass or fail
  • Urgent deficiencies reported to your site contact before the crew leaves
  • Licensed electricians and protection technicians working to CSA Z462 and the site's switching procedures

07How we run a medium-voltage breaker outage

  1. STEP 01

    Scan under load first

    An infrared survey a few weeks before the shutdown finds hot joints while the gear is carrying load, so the outage fixes them instead of discovering them.

  2. STEP 02

    Build the sheets

    Send the single-line, the breaker list and the coordination study. Test sheets are prepared from each instruction book before we travel.

  3. STEP 03

    Switch, rack out, test

    Switching follows the site's procedure and arc-flash assessment. Breakers are racked out, tested as found, serviced, then tested as left, one at a time where the lineup allows.

  4. STEP 04

    Report

    Urgent deficiencies go to your site contact before we leave. The report, completed test sheets and deficiency log usually follow within 10 business days.

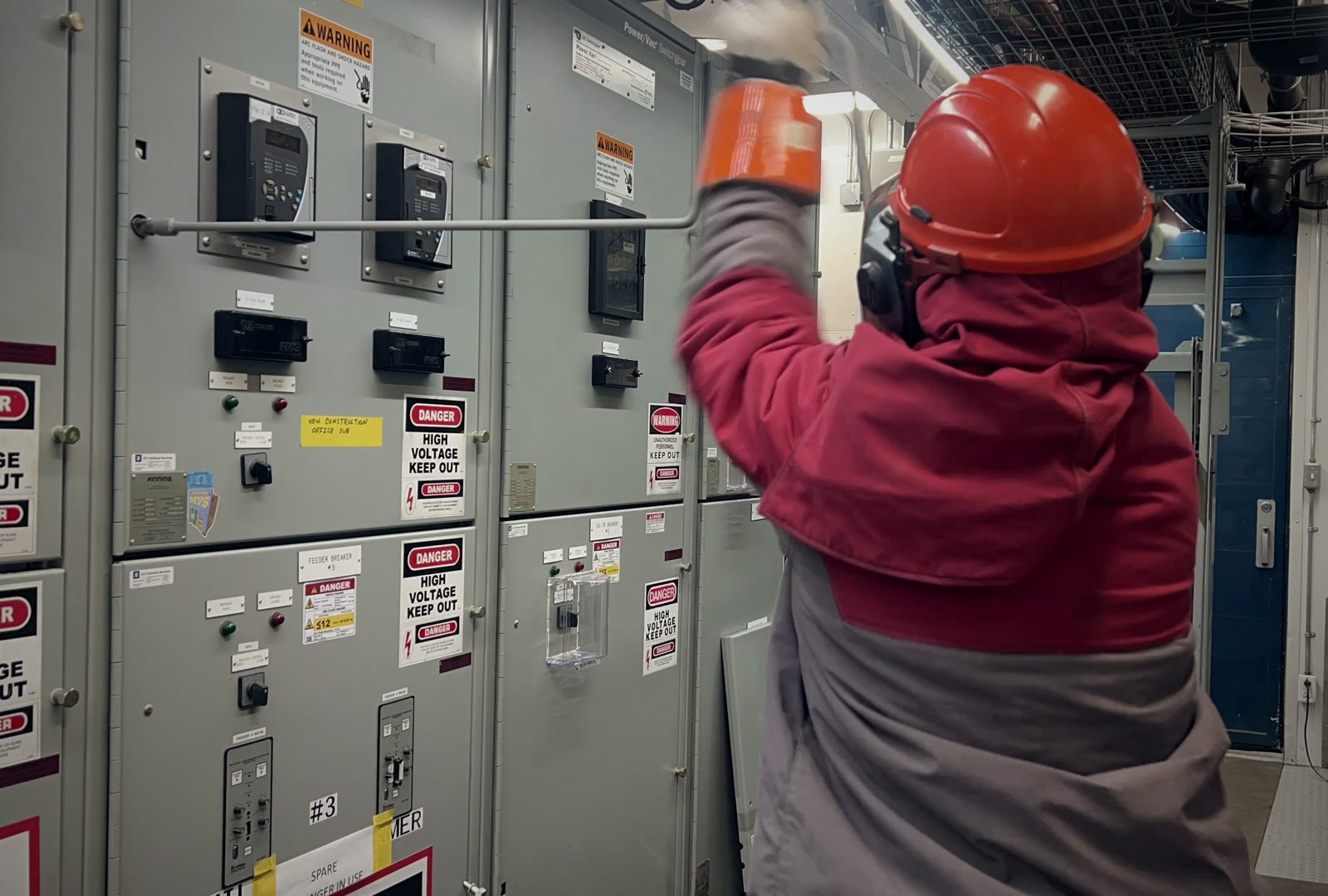

Operator in PPE switching at a medium-voltage switchgear lineup
Fig. 10Switching at the start of a planned outage. Who operates what, and in which PPE, is set by the site's switching procedure and arc-flash assessment.

Our crews are Red Seal electricians and protection technicians based in Halifax and Calgary, working on low- and medium-voltage equipment at sites across Canada, including remote and northern sites. We offer both secondary and primary injection. See circuit breaker testing for the full service, or our low- and medium-voltage breaker testing guide for low-voltage breakers and CSA Z463 program design.

08References

  1. IEEE 1584, IEEE Guide for Performing Arc-Flash Hazard Calculations. Incident energy is calculated in proportion to arcing time.
  2. CIGRE Technical Brochure 510, Final report of the 2004–2007 international enquiry on reliability of high voltage equipment, Part 2: SF6 circuit breakers (2012). e-cigre.org
  3. US Nuclear Regulatory Commission, Information Notice 95-22, on circuit breaker failures caused by hardened or contaminated lubricants (1995). nrc.gov
  4. US Nuclear Regulatory Commission, Information Notice 96-43, Failures of General Electric Magne-Blast Circuit Breakers (August 2, 1996). nrc.gov
  5. ANSI/NETA MTS, Standard for Maintenance Testing Specifications for Electrical Power Equipment and Systems, circuit breaker sections and test values.
  6. NFPA 70B, Standard for Electrical Equipment Maintenance, 2023 edition, Chapter 9 and Table 9.2.2. Summary: EC&M, “A New Standard for Electrical Equipment Maintenance”. ecmweb.com
  7. CSA Z463, Maintenance of electrical systems.
  8. CSA Z32, Electrical safety and essential electrical systems in health care facilities; CSA C282, Emergency electrical power supply for buildings. csagroup.org
  9. IACS, results of the Concentrated Inspection Campaign on onboard emergency power supply (published May 2026), and the Tokyo MoU safety bulletin on emergency power supply testing (July 2024). iacs.org.uk
  10. CSA M421:23, Use of electricity in mines. scc-ccn.ca
  11. InterNational Electrical Testing Association (NETA): founding in 1972 by nine independent testing companies. en.wikipedia.org
