CSA Z32 Testing Explained: What Healthcare Facilities Need to Know About Patient Care Area Electrical Safety
- 1 day ago
- 5 min read
By Dynamic Thermal Imaging | Level II Thermographers & Red Seal Electricians | Atlantic & Western Canada
When most people think about electrical safety in hospitals, they picture circuit breakers and panel schedules. What they don't think about is the invisible risk that exists in every operating room, ICU, and patient care area — the risk of a ground fault delivering current through a patient who is connected to life-sustaining equipment.
That's exactly the scenario CSA Z32 was written to prevent.
If you manage, operate, or build healthcare facilities in Canada, CSA Z32 compliance isn't optional — and understanding what it actually requires (and why) can make the difference between a safe clinical environment and a catastrophic one.
What Is CSA Z32?
CSA Z32 is the Canadian Standards Association standard governing Electrical Safety and Essential Electrical Systems in Health Care Facilities. It sets out the design, installation, and maintenance requirements for electrical systems in any space where patients receive care — from major hospital operating suites down to smaller urgent care and procedure rooms.
At its core, CSA Z32 exists because patients undergoing medical procedures are uniquely vulnerable to electrical hazards. A person connected to cardiac monitoring leads, IV lines, or invasive catheters has a direct, low-resistance path to their heart. In that condition, even a few microamps of stray current — far below what a healthy person would ever feel — can cause ventricular fibrillation.
Standard grounded electrical systems don't eliminate that risk. Isolated Power Systems (IPS) do.
What Is an Isolated Power System (IPS)?
An Isolated Power System is a specially designed electrical distribution system used exclusively in patient care areas. Unlike a conventional grounded system, an IPS uses an isolation transformer to decouple the electrical circuit from ground. This means that if a single fault occurs — a frayed wire, a leaking piece of equipment — no shock hazard is created, and no circuit breaker trips.
The system keeps running. The surgeon keeps operating. And the patient stays safe.

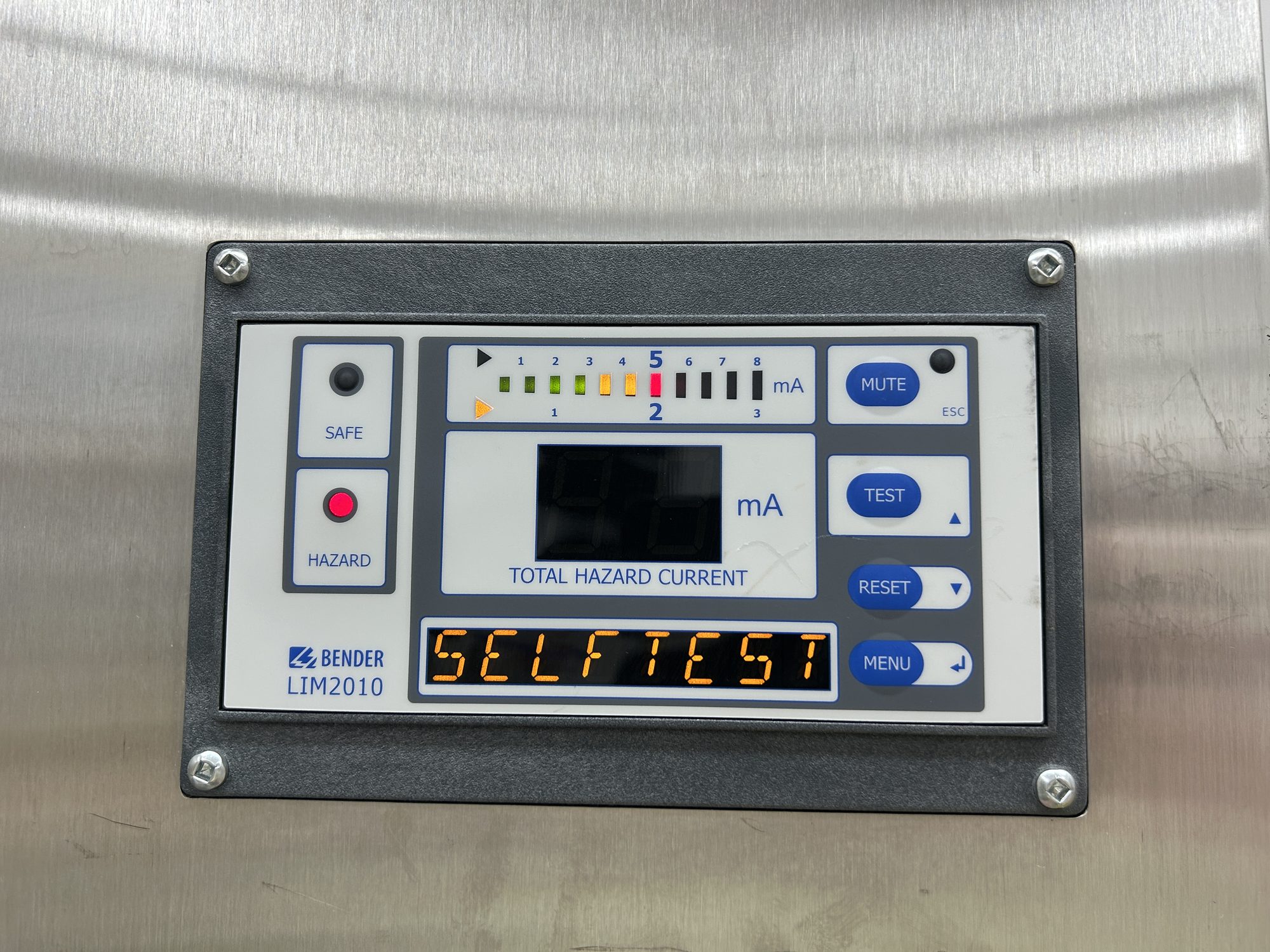

Every IPS is monitored in real time by a Line Isolation Monitor (LIM), which continuously measures the total hazard current in the circuit. The LIM sounds an alarm if the hazard current rises above the threshold defined in CSA Z32 — giving clinical staff time to identify and remove the faulty piece of equipment before any dangerous condition develops.

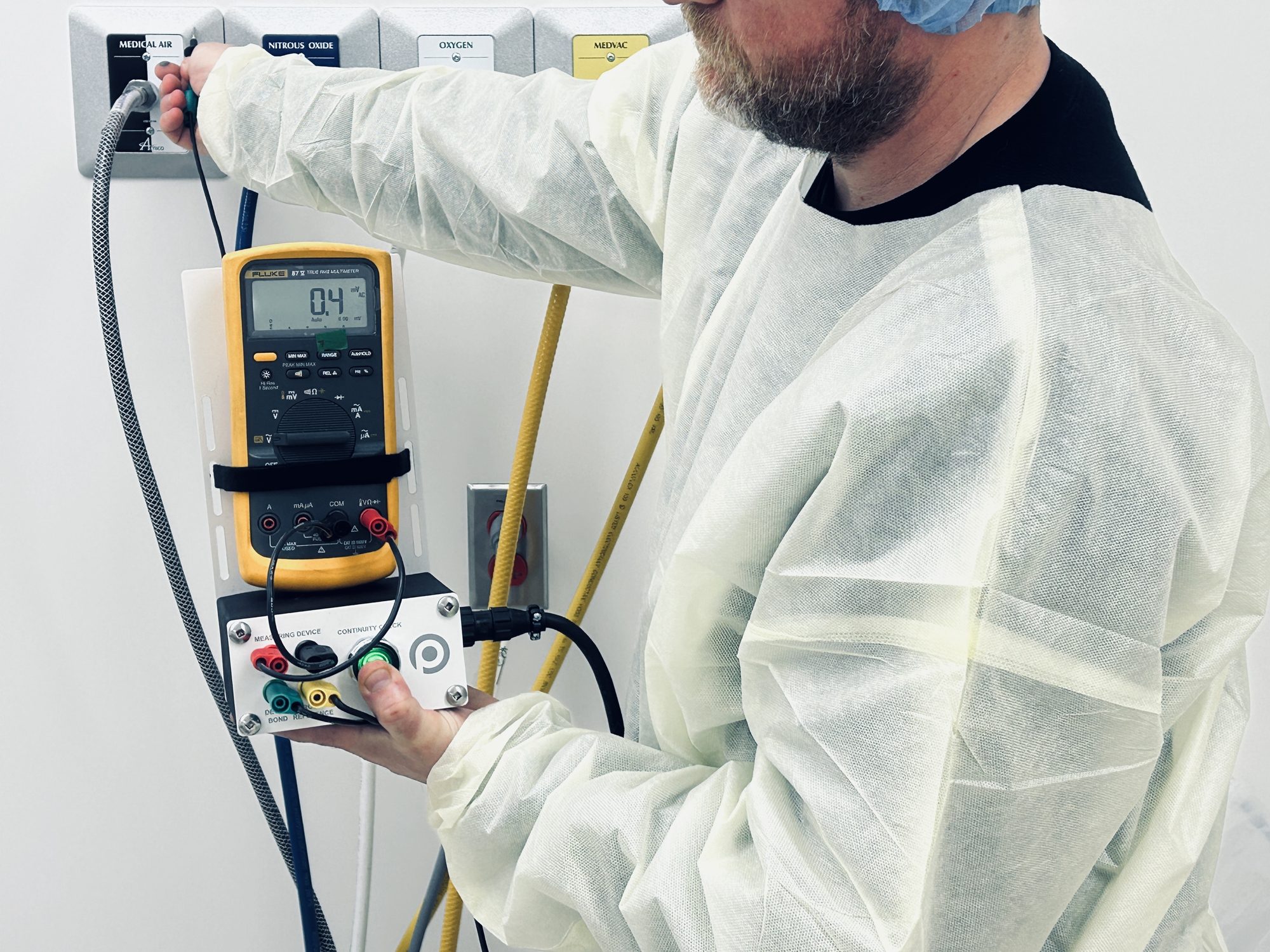

Equipotential grounding test to ensure all non-current carrying metal parts are the same potential as reference ground — standard test in CSA Z32-compliant operating rooms and patient care areas.
Who Needs CSA Z32 Testing?
CSA Z32 applies to any healthcare facility space classified as a patient care area, which includes:
Operating rooms (ORs) — the highest-risk environment and the primary focus of IPS requirements
Cardiac catheterization labs
Intensive care units (ICUs) and critical care areas
Emergency department treatment bays
Procedure rooms where invasive monitoring or surgical procedures occur
Labour and delivery suites
Urgent care and immediate care centres with procedure capability
If your facility has rooms where patients are connected to medical equipment and clinical procedures take place, CSA Z32 almost certainly applies.

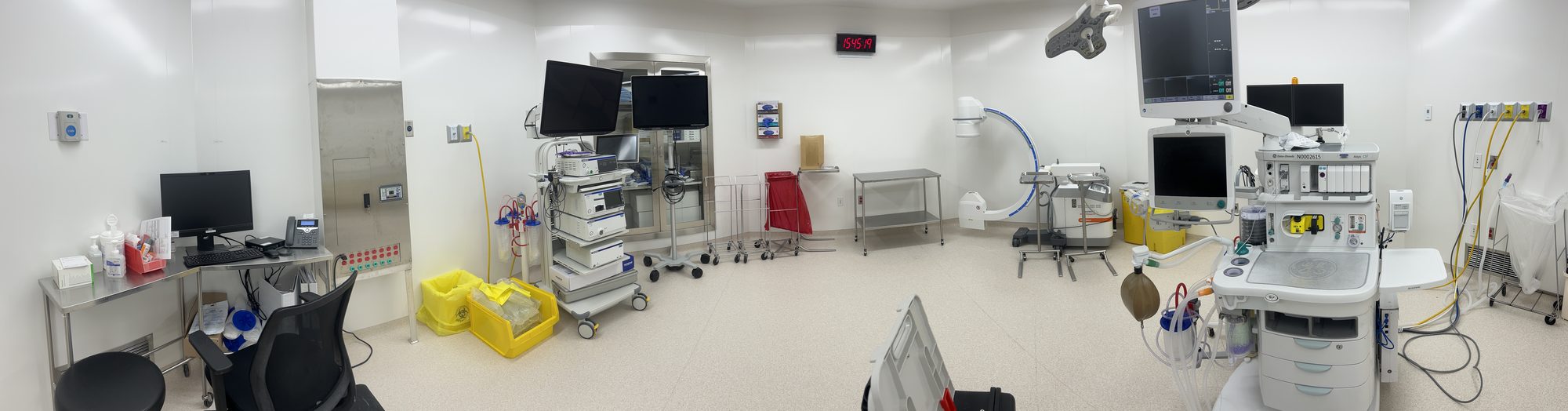

Operating rooms represent the highest-risk patient care environment — isolated power systems are mandatory under CSA Z32 for these spaces.
What Does CSA Z32 Testing Actually Involve?
Compliance isn't a one-time installation sign-off. CSA Z32 requires periodic testing and verification of the isolated power system to confirm it continues to perform within required parameters. This is where qualified testing contractors come in.
A complete CSA Z32 IPS test typically includes:
1. Hazard Current Testing The total prospective hazard current of the isolated circuit is measured using calibrated test equipment. CSA Z32 Clause 5.11.2.1 defines the maximum allowable hazard current thresholds. The test verifies that the isolation transformer and circuit are within specification and that the LIM is accurately measuring hazard current in the system.
2. Line Isolation Monitor (LIM) Verification The LIM is tested and calibrated to confirm it alarms at the correct hazard current level. A LIM that doesn't alarm — or alarms at the wrong threshold — provides no protection. This step confirms the monitor is functioning as designed.
3. Isolation Transformer Testing Insulation resistance and transformer performance are verified. Degraded transformer insulation is one of the most common causes of elevated hazard current readings.
4. Documentation and Reporting All test results are documented against CSA Z32 requirements, with pass/fail determinations for each circuit and component. A compliant test report provides your facility with the documentation it needs for accreditation bodies, insurance, and risk management.

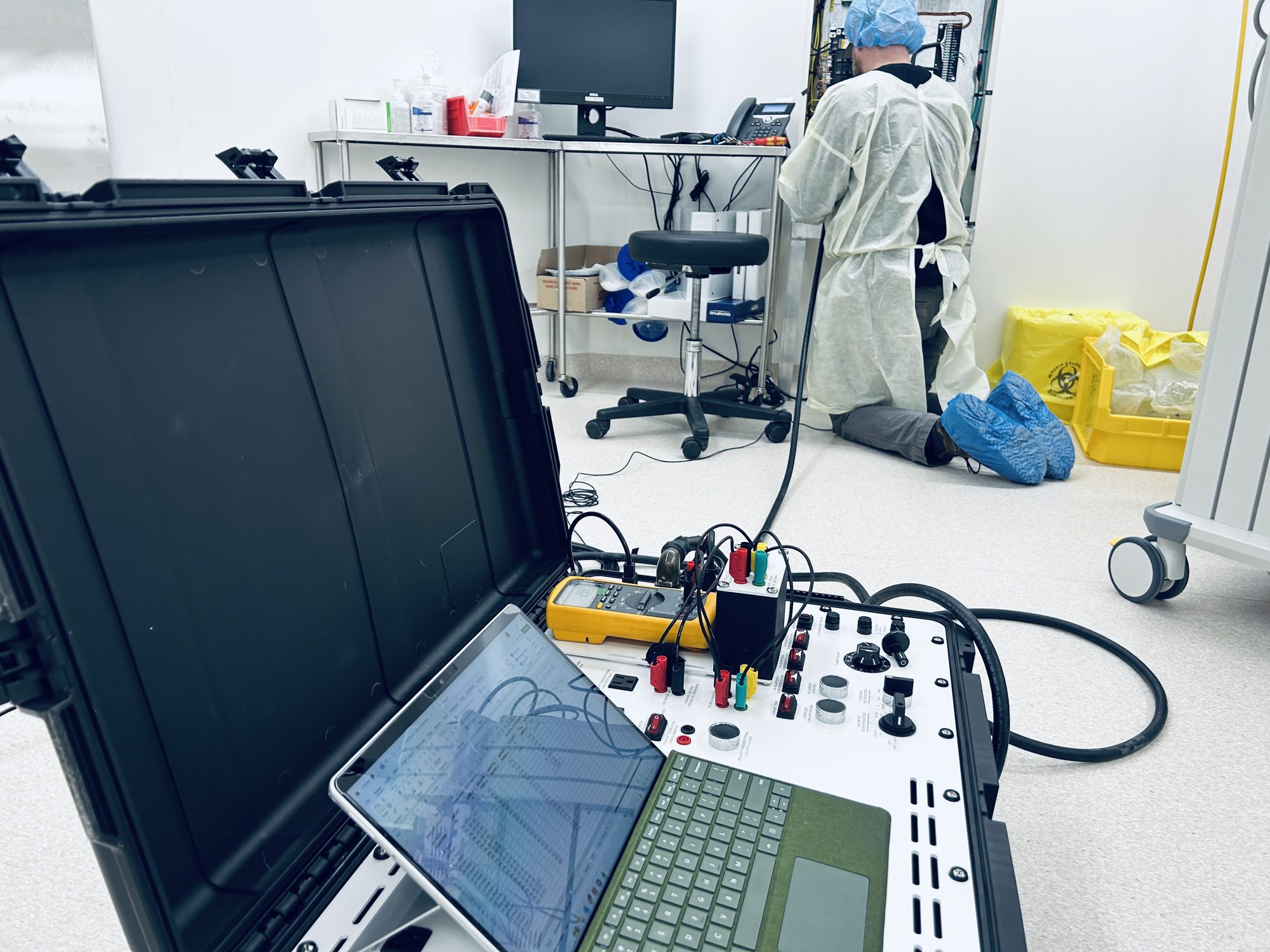

Hazard current testing and LIM verification require calibrated test equipment and a thorough understanding of CSA Z32 clause requirements.
How Often Does Testing Need to Happen?
CSA Z32 requires testing at the time of initial installation and commissioning, and then at regular intervals during the operational life of the facility. The frequency of ongoing testing is typically defined by your facility's maintenance program and any requirements set by accreditation bodies such as Accreditation Canada or provincial health authorities.
For most facilities, annual testing is the standard — and for good reason. Isolated power systems degrade over time. Transformers age, insulation breaks down, and new medical equipment introduced to the circuit can raise the baseline hazard current. Annual testing catches those changes before they become a compliance or safety problem.
What Are the Consequences of Non-Compliance?
The consequences of operating a non-compliant patient care area electrical system are serious on multiple fronts.
Patient safety is the most direct risk. A failed IPS that isn't detected means patients undergoing invasive procedures are exposed to potential electric shock hazards that the system was specifically designed to eliminate.
Accreditation is also at stake. Healthcare facilities seeking or maintaining Accreditation Canada status must demonstrate compliance with applicable electrical safety standards. A failed or undocumented IPS is a finding that can affect accreditation outcomes.
Liability exposure is significant. In the event of an adverse patient event involving the electrical system, undocumented or non-compliant testing creates serious legal and insurance risk for the facility and its ownership.
Regulatory and occupational health requirements may also apply, particularly in provinces where the electrical authority or health authority enforces CSA Z32 compliance as part of facility licensing.

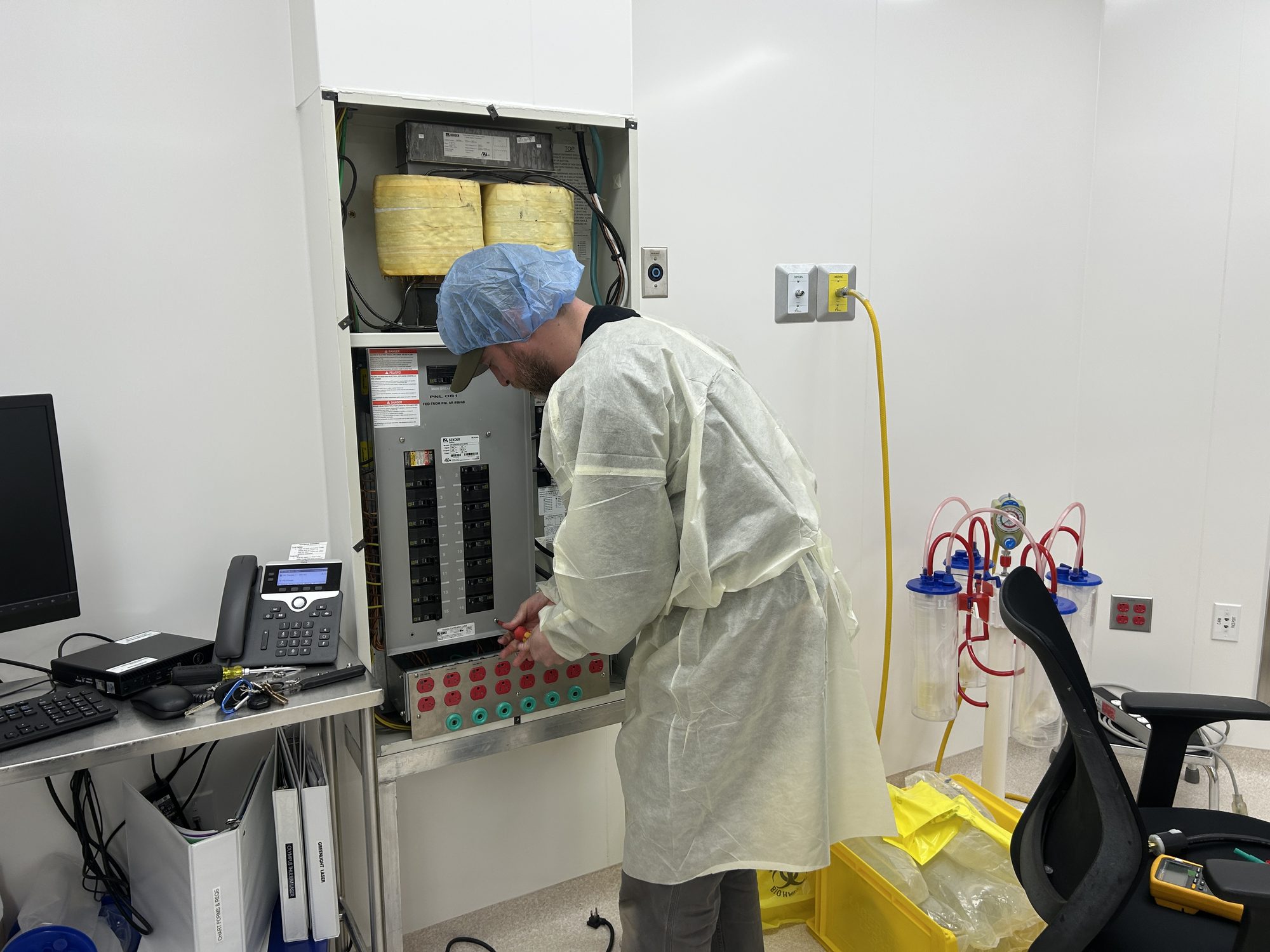

Every patient care area where invasive procedures or monitoring occur carries CSA Z32 compliance obligations — including ICUs, cath labs, and procedure rooms.
What to Look for in a CSA Z32 Testing Contractor
Not every electrical contractor has the equipment, training, or experience to perform compliant CSA Z32 IPS testing. When selecting a testing contractor, healthcare facility managers should look for:
Demonstrated experience with isolated power system testing in healthcare environments
Calibrated test equipment specific to hazard current measurement and LIM verification
Familiarity with CSA Z32 clauses and testing methodology — not just general electrical knowledge
Clear, compliant documentation that your facility can retain for accreditation and audit purposes
Red Seal Electrician credentials combined with formal thermography or electrical testing training
At Dynamic Thermal Imaging, our team includes Red Seal Electricians with direct hands-on experience performing CSA Z32 IPS commissioning and testing in operating rooms and patient care areas across Atlantic Canada. We use calibrated test equipment — including the Bender LIM2010 and PRIME VPDRG-V4 — to perform hazard current calculations and LIM verification in accordance with CSA Z32 clause requirements, and we provide complete, documented test reports your facility can rely on.
Ready to Schedule Your CSA Z32 Testing?
If your facility hasn't had its isolated power systems tested recently — or if you're commissioning a new or renovated patient care area — Dynamic Thermal Imaging can help. We serve healthcare facilities across Atlantic Canada and Western Canada, and we bring the credentials, equipment, and documentation your facility needs to maintain compliance.
Contact us today to discuss your CSA Z32 testing requirements.
📞 Atlantic Canada: 902-329-9685 📞 Western Canada: 403-493-9715
Dynamic Thermal Imaging Inc. provides electrical infrared thermography, electrical testing and maintenance, and CSA Z32 patient care area testing to commercial, industrial, and healthcare facilities across Canada. Our technicians hold Level II Thermographer and Red Seal Electrician credentials.
