Why Annual Thermal Imaging Should Be Part of Every Facility's Preventive Maintenance Plan

3 days ago
5 min read

By Dynamic Thermal Imaging| Level II Thermographers & Red Seal Electricians | Atlantic & Western Canada

For engineers and facility managers, the pressure to keep assets running reliably while controlling maintenance budgets is constant. Electrical failures remain one of the leading causes of unplanned downtime and facility fires — and the frustrating reality is that most of them are preventable. Thermal imaging inspection, performed annually, is one of the highest-ROI tools available in a modern preventive maintenance program. This post breaks down why, with the numbers to back it up.

Key Statistic: According to the NFPA, electrical failures and malfunctions are the second leading cause of U.S. home fires and a top cause of commercial property fires. Studies by organizations including the Electrical Safety Foundation International (ESFI) estimate that up to 80% of electrical failures provide advance thermal warning — detectable weeks or months before failure.

What Is Electrical Thermal Imaging?

Infrared thermography uses calibrated thermal cameras to detect heat anomalies in energized electrical equipment — without shutting anything down. Every connection, conductor, and component in your electrical system carries a thermal signature. Loose connections, overloaded circuits, failing components, and load imbalances all produce excess heat that is invisible to the naked eye but clearly visible through a thermal camera in the hands of a qualified thermographer.

A Level II thermographer doesn't just capture images — they analyze thermal gradients, compare findings against reference temperatures, identify root causes, and produce prioritized deficiency reports that give your maintenance team a clear action plan.

The ROI Case: Breaking Down the Numbers

Let's talk dollars. The return on investment for thermal imaging inspection is well-documented across industries. Consider the following cost comparison:

Scenario	Estimated Cost	Notes
Annual thermal imaging inspection	$2,500/yr	Typical commercial facility rate
Single electrical panel replacement (unplanned)	$8,000–$25,000+	Parts, labour, emergency premium
Unplanned production downtime (per hour)	$10,000–$250,000+	Varies by industry and facility size
Commercial electrical fire loss	$100,000–$1M+	Property, liability, business interruption
Insurance premium reduction (post-inspection)	Up to 10–15%	Many insurers offer credits for documented PM

A single deficiency found and corrected during a thermal inspection can easily return 10x–100x the cost of the inspection itself. For a facility with 20 electrical panels, a comprehensive thermal inspection might cost less than one hour of unplanned downtime.

What Annual Inspections Actually Catch

Over years of inspections across Atlantic and Western Canada, Dynamic Thermal Imaging consistently identifies the following deficiency categories in facilities that have never had a thermal inspection:

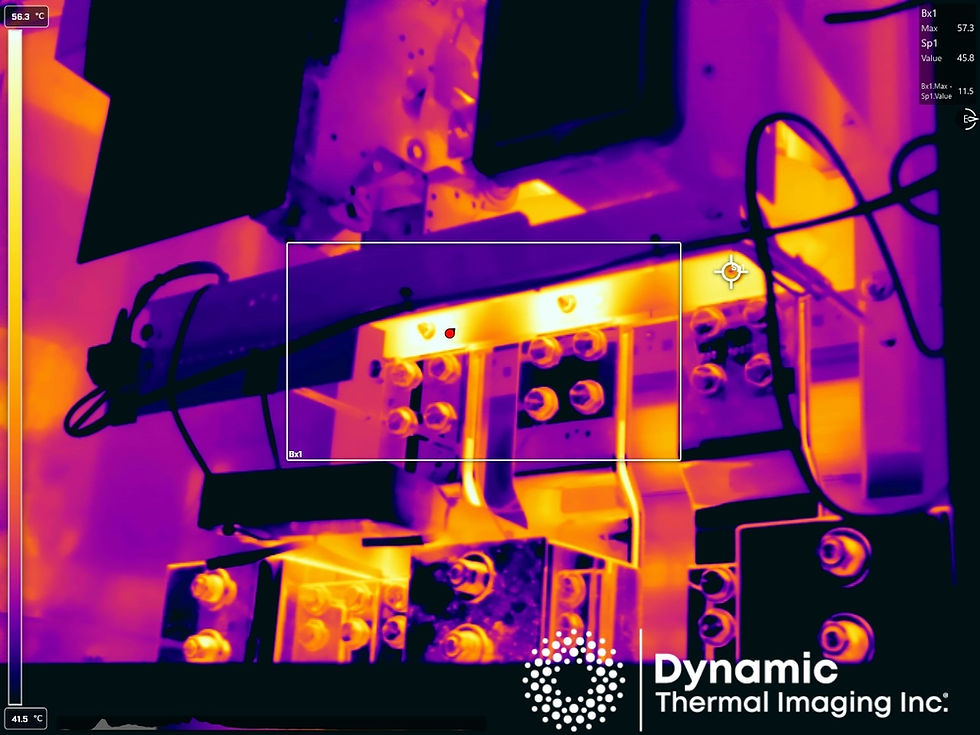

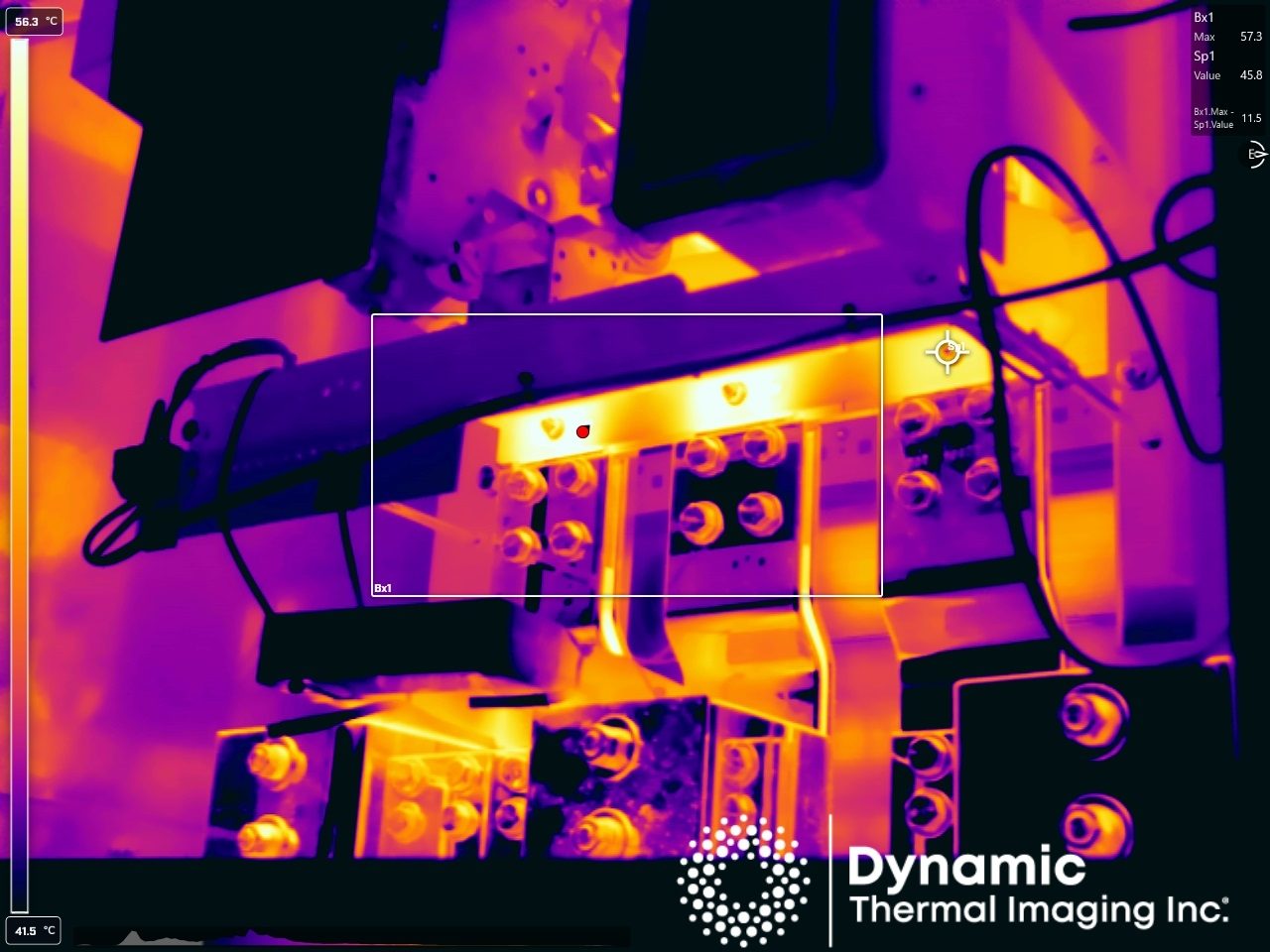

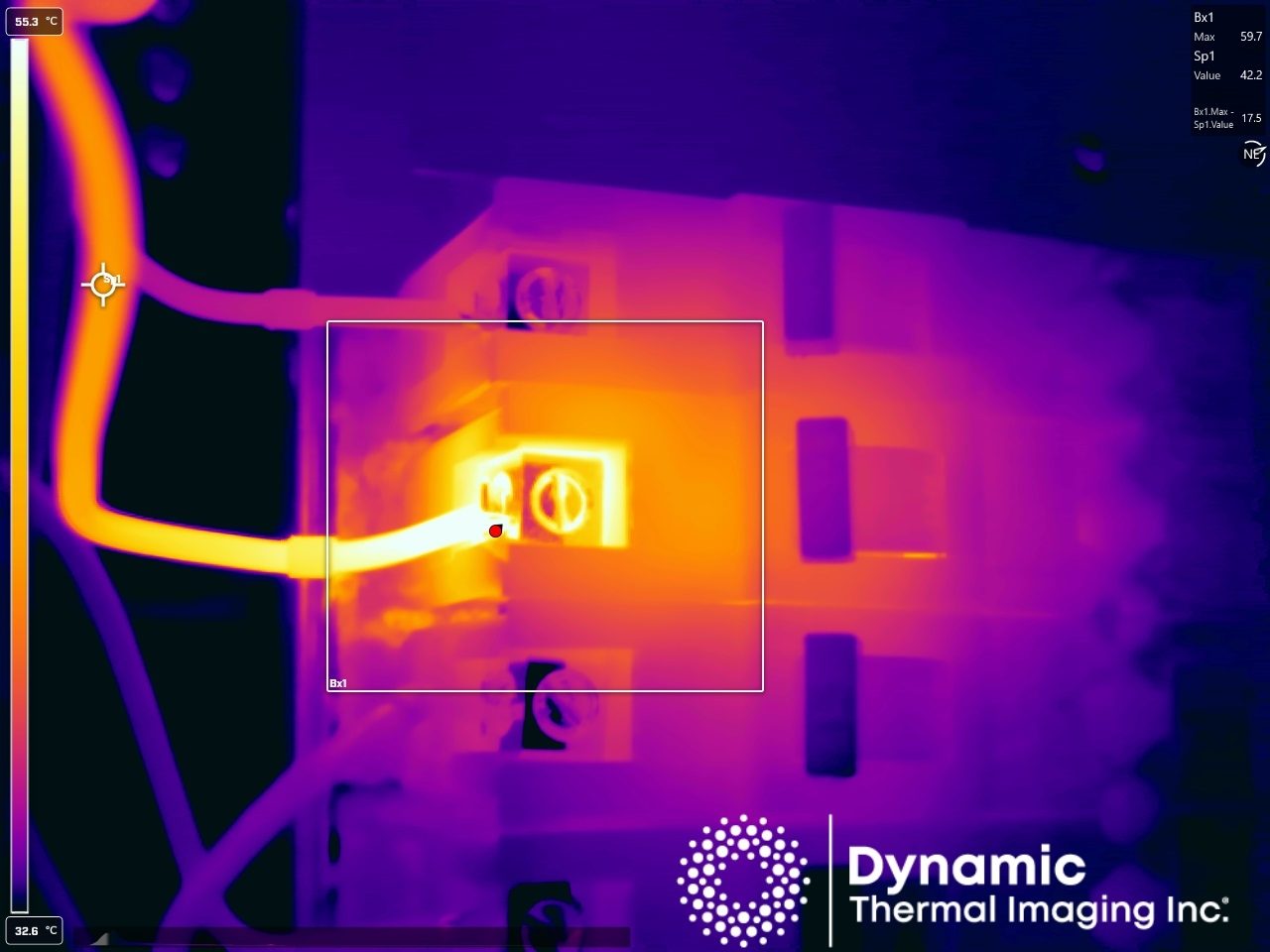

Loose or corroded connections: One of the most common findings. Resistance at connection points generates heat that accelerates corrosion and insulation breakdown. Often found on breaker lugs, bus connections, and wire terminations.
Overloaded conductors and breakers: Circuits operating near or above rated capacity create chronic thermal stress. These often pass visual inspection entirely but show clear thermal signatures under normal operating load.
Load imbalance across three-phase systems: Unbalanced loading causes excess heat in one phase, reduced motor efficiency, and increased neutral current. Identifiable instantly during a thermal scan.
Failing capacitors and motor windings: Failing power factor correction capacitors and motor components heat unevenly. Catching these before failure avoids costly equipment replacements and associated downtime.
Faulty or aging disconnect switches: Switches that have opened and closed thousands of times develop internal wear that creates resistance — visible thermally before they fail in service.
Switchgear and bus duct anomalies: Medium- and high-voltage equipment is expensive and failure-prone. Thermal scans identify anomalies in bus connections, insulator surfaces, and fuse contact points.

Why "Annual" Is the Right Interval

Some facility managers schedule inspections only when something goes wrong, or when an insurer requires it. This reactive approach misses the point entirely. Here's why annual is the right cadence:

Electrical systems change. Load profiles shift with equipment upgrades, tenant changes, production demands, and seasonal variation. A clean report from three years ago tells you very little about today.
Deficiencies develop progressively. A marginal connection found at 40°C above ambient this year may be at 80°C above ambient next year — and failed by year three. Annual inspections catch problems while they're still manageable.
NFPA 70B (Recommended Practice for Electrical Equipment Maintenance) and most commercial property insurers recommend or require annual thermographic inspection as part of a documented PM program.
Year-over-year trending is where the real value lies. When the same equipment is inspected annually, thermographers can identify degradation rates, predict end-of-life timelines, and allow maintenance teams to plan corrective work during scheduled outages — not emergency shutdowns.

The Insurance and Compliance Angle

For facility managers managing risk on behalf of asset owners, the compliance and insurance dimensions of thermal imaging are significant. Many commercial property insurers now:

Offer premium reductions for facilities with documented annual thermographic inspection programs
Require thermal inspection reports as a condition of coverage for certain high-value or high-risk facilities
Use inspection history as a factor in claims investigations following electrical fires or failures

In Canada, healthcare facilities are additionally governed by CSA Z32, which mandates specific electrical testing and inspection protocols to protect patient safety. Dynamic Infrared is one of a small number of firms in Atlantic Canada with the qualifications to perform CSA Z32-compliant thermal inspections.

What to Look for in a Thermal Inspection Provider

Not all thermal inspections are created equal. The value of the inspection is directly tied to the qualifications of the thermographer and the quality of the reporting. When evaluating providers, engineers and facility managers should confirm:

Thermographer certification level: Level II thermographers (certified by an accredited body such as ITC or ASNT) are trained in quantitative thermal analysis, not just image capture. Level I technicians have limited diagnostic authority.
Electrical background: A thermographer who is also a licensed electrician understands the systems they are inspecting. This means more accurate deficiency identification and prioritization, and better communication with your in-house electrical team.
Report quality: The deliverable should include thermal and visual image pairs, delta-T values, severity classifications (often referenced to standards like ISO 18434 or NETA MTS), and clear corrective action recommendations.
Load conditions during inspection: Thermal imaging is only effective when equipment is under load — ideally at least 40% of rated capacity. Confirm your provider understands and adheres to this requirement.
Follow-through capability: A provider who can also perform the corrective work — or clearly communicate the scope to your maintenance contractor — saves you significant time and coordination effort.

The Bottom Line for Engineers and Facility Managers

Electrical thermal imaging is not a luxury or a nice-to-have. For any facility with significant electrical infrastructure — industrial, commercial, institutional, or healthcare — it is one of the most cost-effective risk management tools available. The cost of an annual inspection is a rounding error compared to the cost of a single unplanned failure.

The question isn't whether you can afford to do it. It's whether you can afford not to.

Ready to add thermal imaging to your preventive maintenance program?

Dynamic Infrared serves facilities across Atlantic Canada (Halifax, Moncton, St. John's) and Western Canada (Calgary, Edmonton, Red Deer). Our thermographers hold Level II certification and Red Seal Electrician credentials.

Contact us at dynamicinfrared.ca to schedule your inspection or request a quote.
