Thermography: The Most Dependable Way to Prevent Electrical Failures

By Dynamic Thermal Imaging | Level II Thermographers & Red Seal Electricians | Atlantic & Western Canada

Most electrical failures don’t happen without warning. The problem is that the warning signs are invisible to the naked eye. Heat builds up in a failing connection for weeks or months before a breaker trips, a panel burns, or a production line goes offline. By the time there’s smoke, the damage is already done.

Thermography — the use of calibrated thermal cameras to detect heat anomalies in energized electrical equipment — is the most dependable tool available for finding those problems before they become failures. This post explains what it catches, why it works, and what facility managers and maintenance personnel need to know before scheduling an inspection.

Key Fact: Studies by the Electrical Safety Foundation International (ESFI) estimate that up to 80% of electrical failures provide advance thermal warning — detectable weeks or months before the failure occurs.

How Thermography Works

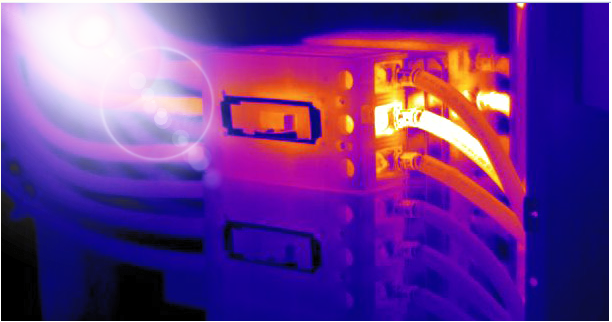

Every electrical connection, conductor, and component in your facility carries a thermal signature. Under normal operating conditions, components run within expected temperature ranges. When something is wrong — a loose lug, an overloaded circuit, a failing capacitor — that component generates excess heat. A thermal camera captures that heat as a visible image.

What separates a qualified thermographer from someone pointing a camera at a panel is the analysis. A Level II thermographer measures thermal gradients, identifies root causes, compares findings to reference temperatures, and produces a prioritized deficiency report. The report tells your maintenance team exactly what needs attention, in what order, and why.

Critically, the inspection is performed while equipment is live and under load. There’s no shutdown required. For most facilities, a full inspection can be completed in a single shift.

What Thermography Actually Finds

In facilities that have never had a thermal inspection, Dynamic Infrared consistently identifies the following:

•       Loose or corroded connections: One of the most common findings. Resistance at a connection point generates heat that accelerates corrosion and degrades insulation. Often found at breaker lugs, bus connections, and wire terminations. Looks completely normal during a visual inspection.

•       Overloaded circuits and breakers: Circuits running near or above rated capacity create chronic thermal stress. They pass visual inspection every time — but under normal operating load, they show a clear thermal signature.

•       Three-phase load imbalance: Unbalanced loading causes excess heat in one phase, reduced motor efficiency, and elevated neutral current. Identifiable instantly during a thermal scan and often missed entirely during routine maintenance.

•       Failing capacitors and motor windings: Power factor correction capacitors and motor components heat unevenly as they age. Catching these before failure means a planned replacement on your schedule, not an emergency repair on the worst possible day.

•       Worn disconnect switches and contactors: Switches that have opened and closed thousands of times develop internal resistance from wear. That resistance shows up thermally before the switch fails in service.

•       Bus duct and switchgear anomalies: Medium- and high-voltage equipment is expensive and critical. Thermal scans identify anomalies in bus connections, insulator surfaces, and fuse contact points that would otherwise go undetected until failure.

Why “Once In a While” Isn’t Good Enough

A lot of facilities schedule thermal inspections reactively — after something fails, or when an insurer asks for documentation. This approach misses the core value of the technology.

Electrical deficiencies develop progressively. A connection running at 40°C above ambient this year may be at 80°C above ambient next year — and failed by year three. A clean report from two or three years ago tells you very little about the condition of your equipment today, especially if loads have changed, equipment has been added, or the facility has aged.

Annual inspections change the picture entirely. When the same equipment is inspected each year, thermographers can track degradation rates, flag components that are trending toward failure, and give maintenance teams the lead time needed to schedule corrective work during planned outages — not emergency shutdowns.

NFPA 70B (Recommended Practice for Electrical Equipment Maintenance) supports annual thermographic inspection as part of a documented preventive maintenance program. Many commercial property insurers now require it — and some offer premium reductions for facilities that maintain documented inspection records.

What to Expect From a Quality Inspection

Not all thermal inspections are the same. The value of the inspection depends entirely on the qualifications of the thermographer and the quality of the report. When evaluating providers, facility managers and maintenance personnel should confirm:

• Level II thermographer certification: Level II thermographers hold certification from an accredited body such as ITC or ASNT and are trained in quantitative thermal analysis — not just image capture. A Level I technician has limited diagnostic authority.

• Licensed electrician background: A thermographer who is also a Red Seal Electrician understands the systems they are inspecting. This produces more accurate findings, better prioritization, and cleaner communication with your in-house electrical team.

• Load conditions at time of inspection: Thermal imaging is only effective when equipment is under load — ideally at least 40% of rated capacity. If your provider doesn't ask about load conditions before scheduling, that's a red flag.

• Electrical asset list: A quality inspection provider should maintain or produce a digital database of the electrical characteristics of your equipment — make, model, voltage, ampacity, age, and condition. This asset list becomes the foundation for trend analysis year over year and gives your maintenance team a single reference point for every piece of inspected equipment.

• Identification stickers and QR codes: Each inspected component should be tagged with a unique identification sticker and QR code. This links physical equipment directly to its inspection history, thermal images, and deficiency records. When a technician is standing in front of a panel at 2am, being able to pull up the full history of that component instantly has real value.

• Electrical safety inspection conforming to the CEC: A thorough provider doesn't stop at thermal anomalies. A visual electrical safety inspection performed in accordance with the Canadian Electrical Code identifies code deficiencies, missing guarding, improper wiring methods, and labelling gaps that a thermal camera alone won't catch. Combined with thermography, it gives you a complete picture of your electrical system's condition.

Eliminate the Risk

Electrical failures are expensive, disruptive, and largely preventable. Thermography doesn’t eliminate risk entirely — but it gives you a systematic, non-invasive way to find the problems that are developing in your system right now, before they take you offline.

For facility managers and maintenance teams under pressure to reduce downtime and control costs, a properly performed annual infrared inspection is one of the most cost-effective decisions you can make. The cost of the inspection is a fraction of the cost of a single unplanned failure — and the information it produces makes every other maintenance decision more accurate.

Dynamic Infrared serves facilities across Atlantic Canada (Halifax, Moncton, St. John’s) and Western Canada (Calgary, Edmonton, Red Deer).

Our thermographers hold Level II certification and Red Seal Electrician credentials.

Contact us at dynamicinfrared.ca to schedule your inspection or request a quote.
